CrowdSec WAF General Setup

This guide covers the core CrowdSec AppSec Component setup that applies to all web servers and reverse proxies. After completing these steps, you'll need to configure your specific remediation component (bouncer) to forward requests to the AppSec Component.

Prerequisites​

  • CrowdSec Security Engine (>= 1.5.6) installed and running
  • A compatible remediation component (bouncer) for your web server or reverse proxy

AppSec Component Setup​

AppSec Setup is done in two simple steps:

  • Downloading rules and configuration's Collections
  • Setting AppSec as a new Acquisition datasource

The following sections will guide you through the default setup.

Collection Installation​

Install the essential AppSec collections that provide virtual patching rules and generic attack detection:

sudo cscli collections install crowdsecurity/appsec-virtual-patching crowdsecurity/appsec-generic-rules

These collections include:

  • Virtual Patching Rules: Protection against known vulnerabilities (CVEs)
  • Generic Attack Detection: Common web attack patterns
  • AppSec Configuration: Default configuration linking rules together
  • CrowdSec Parsers & Scenarios: For processing AppSec events and creating alerts

Acquisition Configuration​

Configure CrowdSec to expose the AppSec Component by creating an acquisition file:

  1. Create the acquisition directory (if it doesn't exist):

    sudo mkdir -p /etc/crowdsec/acquis.d/

  2. Create the AppSec acquisition configuration:

    sudo cat > /etc/crowdsec/acquis.d/appsec.yaml << EOF
    appsec_config: crowdsecurity/appsec-default
    labels:
      type: appsec
    listen_addr: 127.0.0.1:7422
    source: appsec
    name: myAppSecComponent
    EOF

Configuration explained:

  • appsec_config: Uses the default configuration from the installed collections
  • listen_addr: The IP and port where the AppSec Component will listen (default: 127.0.0.1:7422)
  • source: Identifies this as an AppSec data source
  • name: A friendly name for your AppSec component

Do not expose the AppSec Component to the internet. It should only be accessible from your web server or reverse proxy.

Start the AppSec Component​

Restart CrowdSec to activate the AppSec Component:

sudo systemctl restart crowdsec

Testing WAF Component​

Testing Configuration​

Check that the AppSec Component is running:

sudo netstat -tlpn | grep 7422
Output example
tcp        0      0 127.0.0.1:7422            0.0.0.0:*               LISTEN      12345/crowdsec

The output may look differently depending on which command you used but as long as you see the port and the process crowdsec, it means the AppSec Component is running.

Check CrowdSec logs for successful startup:

sudo tail -f /var/log/crowdsec.log

Look for messages like:

INFO[...] Starting Appsec server on 127.0.0.1:7422/
INFO[...] Appsec Runner ready to process event

Next Steps​

Now that the AppSec Component is configured and running, you need to:

  1. Configure your remediation component to forward requests to http://127.0.0.1:7422
  2. Test the setup by triggering a rule
  3. Monitor alerts with sudo cscli alerts list or in the CrowdSec Console

For specific remediation component configuration, see:

Testing Detection​

If you've enabled an AppSec-capable bouncer with CrowdSec WAF, you can trigger the crowdsecurity/appsec-generic-test dummy scenario. This scenario will not lead to decision but is a great way to ensure that your setup is functional.

We'll trigger the dummy scenario crowdsecurity/appsec-generic-test by accessing a probe path on your web server.

1️⃣ Access your service URL with this path: /crowdsec-test-NtktlJHV4TfBSK3wvlhiOBnl

curl -I https://<your-service-url>/crowdsec-test-NtktlJHV4TfBSK3wvlhiOBnl

2️⃣ Confirm the alert has triggered for the scenario crowdsecurity/appsec-generic-test

sudo cscli alerts list | grep crowdsecurity/appsec-generic-test

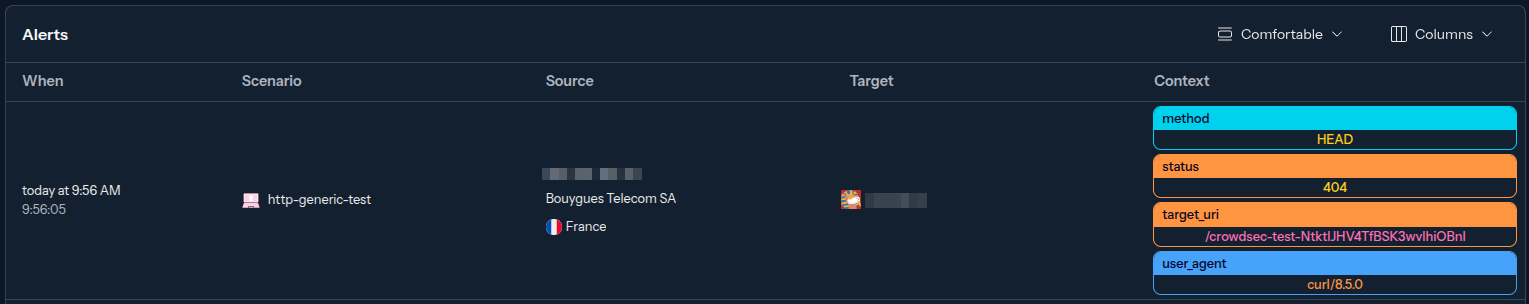

3️⃣ The alert will also appear in the console alerts

appsec-generic-test console view

This scenario can only be triggered again after a 1-minute delay.

Optional: Advanced Configuration​

Multiple AppSec Configurations​

You can load multiple AppSec configurations for different rule sets:

# /etc/crowdsec/acquis.d/appsec.yaml
appsec_configs:
  - crowdsecurity/appsec-default    # Virtual patching rules (in-band)
  - crowdsecurity/crs               # OWASP CRS rules (out-of-band)
labels:
  type: appsec
listen_addr: 127.0.0.1:7422
source: appsec
name: myAppSecComponent

Custom Port Configuration​

To use a different port, update the listen_addr in your acquisition file and ensure your remediation component points to the same address.

Troubleshooting​

If the AppSec Component fails to start:

  1. Check port availability: Ensure port 7422 isn't already in use
  2. Verify collections: Run sudo cscli collections list to confirm installation
  3. Check configuration syntax: Validate your appsec.yaml file
  4. Review logs: Check /var/log/crowdsec.log for error messages

For detailed troubleshooting, see the AppSec Troubleshooting Guide.
