Webhook
Install the webhook integration
Installing the webhook integration allow you to configure any webhook URL when configuring your notification rule.

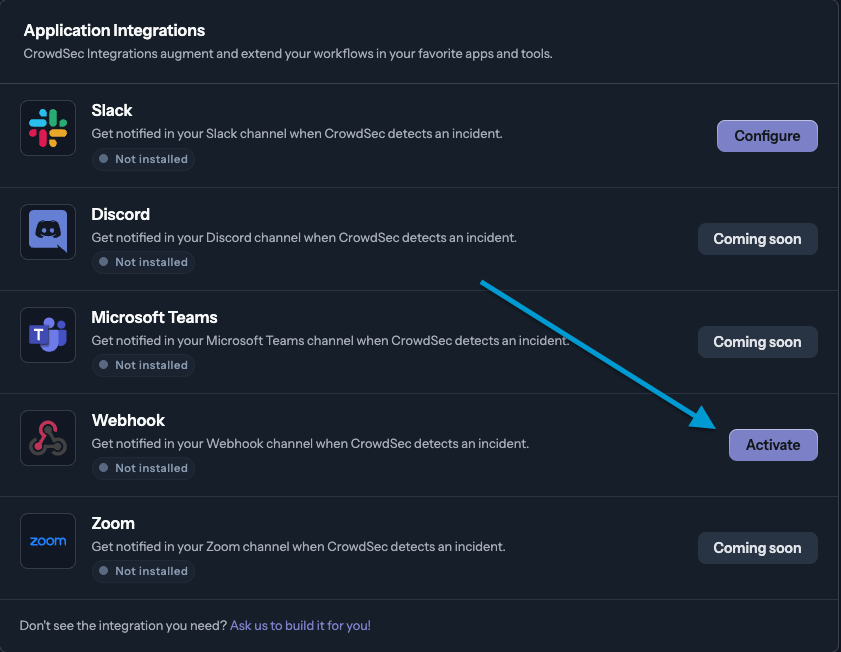

- In the CrowdSec Console, navigate to Settings > Integrations and then select Activate in the Webhook row.

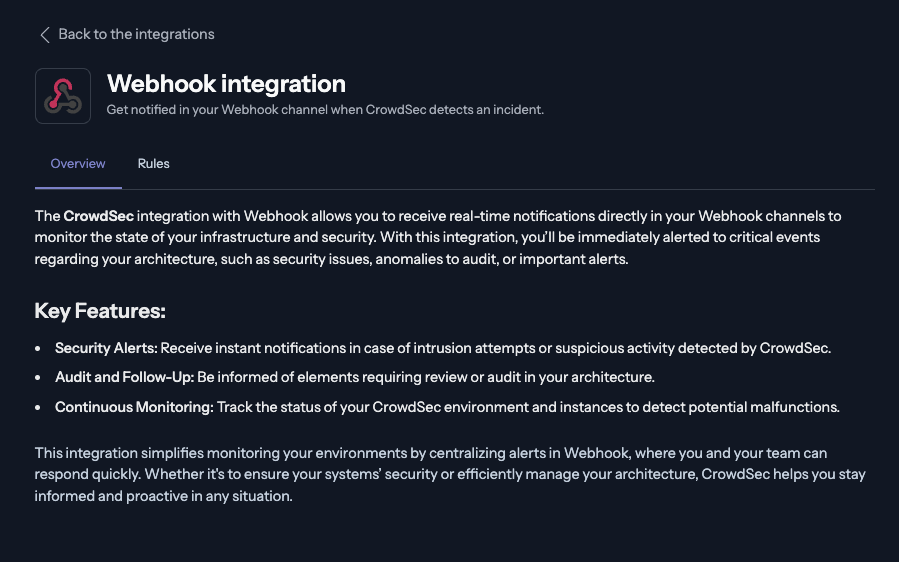

- You should be redirected to the Webhook integration page. You can now create a notification rule by navigating to the Rules tab.
Create a notification rule
-
In the CrowdSec Console, navigate to Settings > Integrations > Webhook go to the Rules tab and click on Add rule.
-

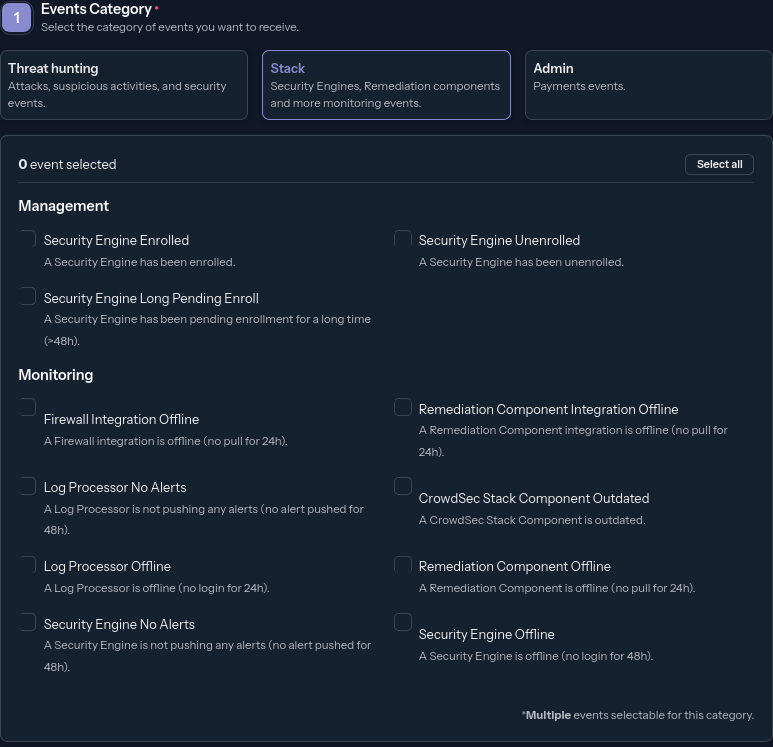

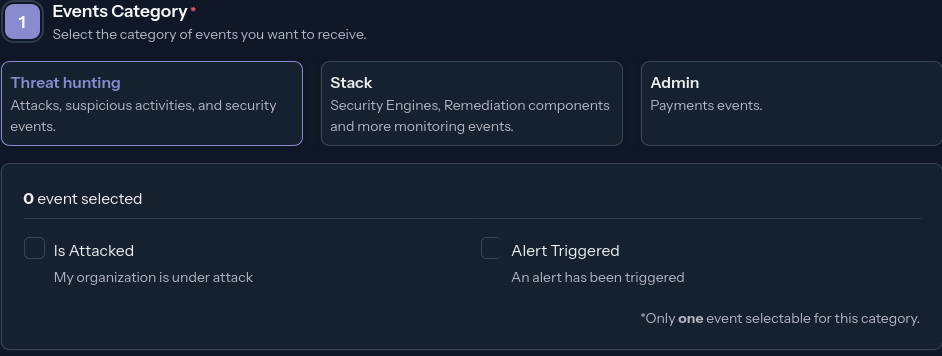

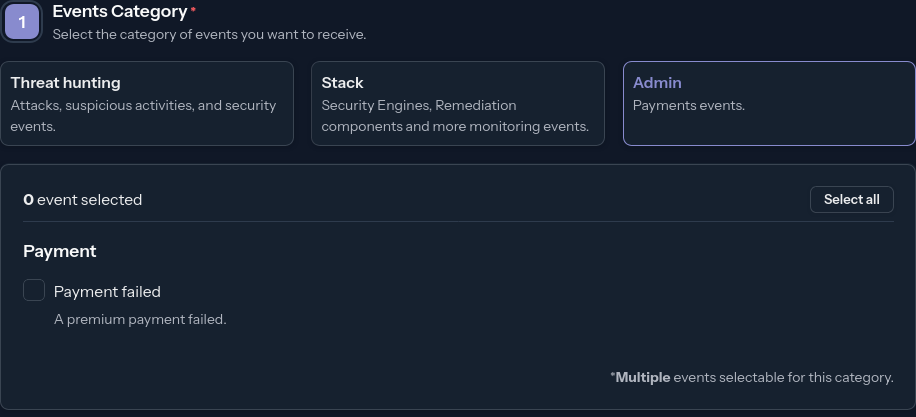

Follow the steps in the Create a notification rule documentation to create your rule.
Configure webhook
Authentication
For the authentication part, the webhook integration support the following methods:
HTTP Header name/HTTP Header value: You can provide a specific header name with a specific header value for the webhook integration to authenticate against your webhook URLBasic auth: You can usebasic auth(user/password) for the webhook integration to authenticate against your webhook URL
Configuration
warning
You can’t ping the webhook URL while in edit mode.

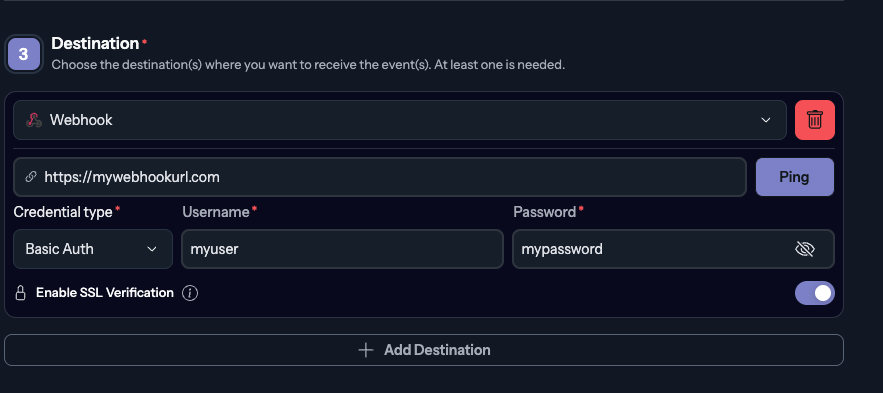

You can configure your custom Webhook URL and authentication by adding a new destination in your notification rule:
info
If the HTTPs endpoint certificate is not valid, you can choose to disable SSL verification.
Retry
If a notification fails to be sent through the webhook integration, the system will automatically retry sending it. It will try up to 5 times, with a longer wait between each attempt.
Events
security_engine_long_pending_enroll
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"version": "v1.6.3-rc4",
"os" : {"name" : "ubuntu", "version": "22.04"},
"event_type": "security_engine_long_pending_enroll"
}
}
JSON Schema
{
"$defs": {
"OperatingSystem": {
"properties": {
"name": {
"title": "Name",
"type": "string"
},
"version": {
"title": "Version",
"type": "string"
}
},
"required": [
"name",
"version"
],
"title": "OperatingSystem",
"type": "object"
}
},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the security engine",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the security engine",
"examples": [
"v1.6.3-rc4"
],
"title": "Version"
},
"os": {
"anyOf": [
{
"$ref": "#/$defs/OperatingSystem"
},
{
"type": "null"
}
],
"default": null,
"description": "Operating System of the security engine",
"examples": [
"Linux"
]
},
"event_type": {
"const": "security_engine_long_pending_enroll",
"default": "security_engine_long_pending_enroll",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"version",
"os",
"event_type"
],
"title": "LongPendingEnroll",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
security_engine_enrolled
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"version": "v1.6.3-rc4",
"os" : {"name" : "ubuntu", "version": "22.04"},
"event_type": "security_engine_enrolled"
}
}
JSON Schema
{
"$defs": {
"OperatingSystem": {
"properties": {
"name": {
"title": "Name",
"type": "string"
},
"version": {
"title": "Version",
"type": "string"
}
},
"required": [
"name",
"version"
],
"title": "OperatingSystem",
"type": "object"
}
},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the security engine",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the security engine",
"examples": [
"v1.6.3-rc4"
],
"title": "Version"
},
"os": {
"anyOf": [
{
"$ref": "#/$defs/OperatingSystem"
},
{
"type": "null"
}
],
"default": null,
"description": "Operating System of the security engine",
"examples": [
"Linux"
]
},
"event_type": {
"const": "security_engine_enrolled",
"default": "security_engine_enrolled",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"version",
"os",
"event_type"
],
"title": "SecurityEngineEnrolled",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
security_engine_unenrolled
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"version": "v1.6.3-rc4",
"os" : {"name" : "ubuntu", "version": "22.04"},
"event_type": "security_engine_unenrolled"
}
}
JSON Schema
{
"$defs": {
"OperatingSystem": {
"properties": {
"name": {
"title": "Name",
"type": "string"
},
"version": {
"title": "Version",
"type": "string"
}
},
"required": [
"name",
"version"
],
"title": "OperatingSystem",
"type": "object"
}
},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the security engine",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the security engine",
"examples": [
"v1.6.3-rc4"
],
"title": "Version"
},
"os": {
"anyOf": [
{
"$ref": "#/$defs/OperatingSystem"
},
{
"type": "null"
}
],
"default": null,
"description": "Operating System of the security engine",
"examples": [
"Linux"
]
},
"event_type": {
"const": "security_engine_unenrolled",
"default": "security_engine_unenrolled",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"version",
"os",
"event_type"
],
"title": "SecurityEngineUnenrolled",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
component_outdated
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"event_type": "component_outdated",
"nb_remediation_component": 10,
"nb_log_processor": 10,
"nb_security_engine": 10
}
}
JSON Schema
{
"$defs": {},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"event_type": {
"const": "component_outdated",
"default": "component_outdated",
"title": "Event Type",
"type": "string"
},
"nb_remediation_component": {
"description": "Number of remediation component",
"examples": [
10
],
"title": "Nb Remediation Component",
"type": "integer"
},
"nb_log_processor": {
"description": "Number of log processor",
"examples": [
10
],
"title": "Nb Log Processor",
"type": "integer"
},
"nb_security_engine": {
"description": "Number of security engine",
"examples": [
10
],
"title": "Nb Security Engine",
"type": "integer"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"event_type",
"nb_remediation_component",
"nb_log_processor",
"nb_security_engine"
],
"title": "ComponentOutdated",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
security_engine_offline
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"version": "v1.6.3-rc4",
"os" : {"name" : "ubuntu", "version": "22.04"},
"event_type": "security_engine_offline",
"last_login": "2024-09-17T07:06:21",
"name": "MySecurityEngine"
}
}
JSON Schema
{
"$defs": {
"OperatingSystem": {
"properties": {
"name": {
"title": "Name",
"type": "string"
},
"version": {
"title": "Version",
"type": "string"
}
},
"required": [
"name",
"version"
],
"title": "OperatingSystem",
"type": "object"
}
},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the security engine",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the security engine",
"examples": [
"v1.6.3-rc4"
],
"title": "Version"
},
"os": {
"anyOf": [
{
"$ref": "#/$defs/OperatingSystem"
},
{
"type": "null"
}
],
"default": null,
"description": "Operating System of the security engine",
"examples": [
"Linux"
]
},
"last_login": {
"title": "Last Login",
"type": "string"
},
"event_type": {
"const": "security_engine_offline",
"default": "security_engine_offline",
"title": "Event Type",
"type": "string"
},
"name": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"description": "Name of the security engine",
"examples": [
"MySecurityEngine"
],
"title": "Name"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"version",
"os",
"last_login",
"event_type",
"name"
],
"title": "SecurityEngineOffline",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
security_engine_no_alerts
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"version": "v1.6.3-rc4",
"os" : {"name" : "ubuntu", "version": "22.04"},
"last_push": "2024-09-17T07:06:21",
"event_type": "security_engine_no_alerts",
"name": "MySecurityEngine"
}
}
JSON Schema
{
"$defs": {
"OperatingSystem": {
"properties": {
"name": {
"title": "Name",
"type": "string"
},
"version": {
"title": "Version",
"type": "string"
}
},
"required": [
"name",
"version"
],
"title": "OperatingSystem",
"type": "object"
}
},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the security engine",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the security engine",
"examples": [
"v1.6.3-rc4"
],
"title": "Version"
},
"os": {
"anyOf": [
{
"$ref": "#/$defs/OperatingSystem"
},
{
"type": "null"
}
],
"default": null,
"description": "Operating System of the security engine",
"examples": [
"Linux"
]
},
"last_push": {
"description": "Last time the security engine pushed",
"examples": [
"2024-09-17T07:06:21"
],
"title": "Last Push",
"type": "string"
},
"event_type": {
"const": "security_engine_no_alerts",
"default": "security_engine_no_alerts",
"title": "Event Type",
"type": "string"
},
"name": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"description": "Name of the security engine",
"examples": [
"MySecurityEngine"
],
"title": "Name"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"version",
"os",
"last_push",
"event_type",
"name"
],
"title": "SecurityEngineNoAlerts",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
remediation_component_offline
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"name": "MyRemediationComponent",
"version": "v0.22",
"event_type": "remediation_component_offline",
"last_pull": "2024-09-17T07:06:21"
}
}
JSON Schema
{
"$defs": {},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the remediation component",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"name": {
"description": "Name of the remediation component",
"examples": [
"MyBlocklistIntegration"
],
"title": "Name",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the remediation component",
"examples": [
"v0.22"
],
"title": "Version"
},
"last_pull": {
"title": "Last Pull",
"type": "string"
},
"event_type": {
"const": "remediation_component_offline",
"default": "remediation_component_offline",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"name",
"version",
"last_pull",
"event_type"
],
"title": "RemediationComponentOffline",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
log_processor_offline
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"name": "MyLogProcessor",
"version": "v1.6.3-rc4",
"last_update": "2024-09-17T07:06:21",
"event_type": "log_processor_offline"
}
}
JSON Schema
{
"$defs": {},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the Log Processor",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"name": {
"description": "Name of the Log Processor",
"examples": [
"MyLogProcessor"
],
"title": "Name",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the Log Processor",
"examples": [
"v1.6.3-rc4"
],
"title": "Version"
},
"last_update": {
"description": "Last time the Log Processor updated",
"examples": [
"2024-09-17T07:06:21"
],
"title": "Last Update",
"type": "string"
},
"event_type": {
"const": "log_processor_offline",
"default": "log_processor_offline",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"name",
"version",
"last_update",
"event_type"
],
"title": "LogProcessorOffline",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
log_processor_no_alerts
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"name": "MyLogProcessor",
"version": "v1.6.3-rc4",
"event_type": "log_processor_no_alerts",
"last_push": "2025-05-17T07:06:21"
}
}
JSON Schema
{
"$defs": {},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the Log Processor",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"name": {
"description": "Name of the Log Processor",
"examples": [
"MyLogProcessor"
],
"title": "Name",
"type": "string"
},
"version": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "Version of the Log Processor",
"examples": [
"v1.6.3-rc4"
],
"title": "Version"
},
"last_push": {
"title": "Last Push",
"type": "string"
},
"event_type": {
"const": "log_processor_no_alerts",
"default": "log_processor_no_alerts",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"name",
"version",
"last_push",
"event_type"
],
"title": "LogProcessorNoAlerts",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
firewall_integration_offline
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"name": "MyBlocklistIntegration",
"last_pull": "2024-09-17T07:06:21",
"event_type": "firewall_integration_offline"
}
}
JSON Schema
{
"$defs": {},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the blocklist integration",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"name": {
"description": "Name of the blocklist integration",
"examples": [
"MyBlocklistIntegration"
],
"title": "Name",
"type": "string"
},
"last_pull": {
"description": "Last time the blocklist integration pulled",
"examples": [
"2024-09-17T07:06:21"
],
"title": "Last Pull",
"type": "string"
},
"event_type": {
"const": "firewall_integration_offline",
"default": "firewall_integration_offline",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"name",
"last_pull",
"event_type"
],
"title": "FirewallIntegrationOffline",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
remediation_component_integration_offline
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"id": "12345677732339c3d12345164a8426sbnk6ll4iaazda1234",
"name": "MyBlocklistIntegration",
"last_pull": "2024-09-17T07:06:21",
"event_type": "remediation_component_integration_offline"
}
}
JSON Schema
{
"$defs": {},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"id": {
"description": "ID of the blocklist integration",
"examples": [
"12345677732339c3d12345164a8426sbnk6ll4iaazda1234"
],
"title": "Id",
"type": "string"
},
"name": {
"description": "Name of the blocklist integration",
"examples": [
"MyBlocklistIntegration"
],
"title": "Name",
"type": "string"
},
"last_pull": {
"description": "Last time the blocklist integration pulled",
"examples": [
"2024-09-17T07:06:21"
],
"title": "Last Pull",
"type": "string"
},
"event_type": {
"const": "remediation_component_integration_offline",
"default": "remediation_component_integration_offline",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"id",
"name",
"last_pull",
"event_type"
],
"title": "RemediationComponentIntegrationOffline",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
payment_failed
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"event_type": "payment_failed"
}
}
JSON Schema
{
"$defs": {},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"event_type": {
"const": "payment_failed",
"default": "payment_failed",
"title": "Event Type",
"type": "string"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"event_type"
],
"title": "PremiumPaymentFailed",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
am_i_under_attack
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"event_type": "am_i_under_attack",
"start_date": "2025-05-26T12:00:00Z",
"end_date": "2025-05-26T14:00:00Z",
"segments_with_anomaly": [
"2025-05-26T12:15:00Z",
"2025-05-26T12:45:00Z",
"2025-05-26T13:30:00Z"
],
"total_signals": 42,
"report_data": {
"is_attack_detected": true,
"unique_detections": 5,
"total_detections": 23,
"attack_length": 7200,
"first_detection_date": "2025-05-26T12:10:00Z",
"last_detection_date": "2025-05-26T13:55:00Z",
"increased_percentage": 67.5
},
"watchers": [
{
"watcher_uuid": "abc123-watcher-uuid-001",
"total_signals": 20
},
{
"watcher_uuid": "def456-watcher-uuid-002",
"total_signals": 22
}
]
}
}
JSON Schema
{
"$defs": {
"AIUAAnomalyReport": {
"description": "Key stats about the anomaly detection results.",
"properties": {
"is_attack_detected": {
"description": "An attack has been detected",
"title": "Is Attack Detected",
"type": "boolean"
},
"unique_detections": {
"description": "The number of unique detections",
"title": "Unique Detections",
"type": "integer"
},
"total_detections": {
"description": "The total number of detections",
"title": "Total Detections",
"type": "integer"
},
"attack_length": {
"description": "The length of the attack",
"title": "Attack Length",
"type": "integer"
},
"first_detection_date": {
"description": "The first detection date",
"format": "date-time",
"title": "First Detection Date",
"type": "string"
},
"last_detection_date": {
"description": "The last detection date",
"format": "date-time",
"title": "Last Detection Date",
"type": "string"
},
"increased_percentage": {
"description": "The increased percentage",
"title": "Increased Percentage",
"type": "number"
}
},
"required": [
"is_attack_detected",
"unique_detections",
"total_detections",
"attack_length",
"first_detection_date",
"last_detection_date",
"increased_percentage"
],
"title": "AIUAAnomalyReport",
"type": "object"
},
"AIUAWatcherReport": {
"description": "Key stats about the anomaly detection results.",
"properties": {
"watcher_uuid": {
"description": "The watcher UUID",
"title": "Watcher Uuid",
"type": "string"
},
"total_signals": {
"description": "The total number of signals",
"title": "Total Signals",
"type": "integer"
}
},
"required": [
"watcher_uuid",
"total_signals"
],
"title": "AIUAWatcherReport",
"type": "object"
}
},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"event_type": {
"const": "am_i_under_attack",
"default": "am_i_under_attack",
"title": "Event Type",
"type": "string"
},
"start_date": {
"description": "The attack start date",
"format": "date-time",
"title": "Start Date",
"type": "string"
},
"end_date": {
"description": "The attack end date",
"format": "date-time",
"title": "End Date",
"type": "string"
},
"segments_with_anomaly": {
"default": [],
"description": "List of detection timestamps",
"items": {
"format": "date-time",
"type": "string"
},
"title": "Segments With Anomaly",
"type": "array"
},
"total_signals": {
"default": 0,
"description": "The total number of signals",
"title": "Total Signals",
"type": "integer"
},
"report_data": {
"anyOf": [
{
"$ref": "#/$defs/AIUAAnomalyReport"
},
{
"type": "null"
}
],
"default": null,
"description": "Anomaly report data"
},
"watchers": {
"default": [],
"description": "Watcher reports",
"items": {
"$ref": "#/$defs/AIUAWatcherReport"
},
"title": "Watchers",
"type": "array"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"event_type",
"start_date",
"end_date",
"segments_with_anomaly",
"total_signals",
"report_data",
"watchers"
],
"title": "AmIUnderAttack",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
alert_triggered
{
"metadata": {
"version": 1,
"issuer": "crowdsec.net"
},
"details": {
"event_id": "c6d468d4f1084ebca84165c33f97fbc4",
"organization_id": "12345678-1234-1234-1234-123456789012",
"event_timestamp": "2021-07-29T12:00:00+00:00",
"event_type": "alert_triggered",
"uuid": "alert-uuid-1234",
"message": "Suspicious SSH behavior detected",
"scenario": "ssh-brute-force",
"behaviors": [
{
"name": "Brute Force",
"description": "Multiple failed SSH login attempts detected in short time",
"label": "SSH Brute Force"
},
{
"name": "Port Scan",
"description": "Scanning activity detected on multiple ports",
"label": "Scan"
}
],
"start_at": "2025-05-26T18:00:00Z",
"stop_at": "2025-05-26T18:10:00Z",
"target": {
"ip": "192.168.1.10",
"id": "machine-01",
"name": "internal-server-01"
},
"source": {
"scope": "ip",
"value": "203.0.113.25",
"as_name": "ExampleISP",
"as_number": 64512,
"country": "US",
"city": "San Francisco",
"latitude": 37.7749,
"longitude": -122.4194,
"rdns": "25.113.0.203.example.com"
},
"is_manual_decision": false,
"scenario_confidence": 85
}
}
JSON Schema
{
"$defs": {
"AlertBehavior": {
"properties": {
"name": {
"description": "The attack behavior name",
"title": "Name",
"type": "string"
},
"description": {
"description": "The attack behavior description",
"title": "Description",
"type": "string"
},
"label": {
"description": "The attack behavior label",
"title": "Label",
"type": "string"
}
},
"required": [
"name",
"description",
"label"
],
"title": "AlertBehavior",
"type": "object"
},
"AlertTarget": {
"properties": {
"ip": {
"description": "The IP targeted by the attack",
"title": "Ip",
"type": "string"
},
"id": {
"description": "The id of the machine targeted by the attack",
"title": "Id",
"type": "string"
},
"name": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "The name of the machine targeted by the attack",
"title": "Name"
}
},
"required": [
"ip",
"id"
],
"title": "AlertTarget",
"type": "object"
},
"AlertSource": {
"properties": {
"scope": {
"description": "The scope of the value",
"title": "Scope",
"type": "string"
},
"value": {
"description": "The value of the source",
"title": "Value",
"type": "string"
},
"as_name": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "The AS name of the source",
"title": "As Name"
},
"as_number": {
"anyOf": [
{
"type": "integer"
},
{
"type": "null"
}
],
"default": null,
"description": "The AS number of the source",
"title": "As Number"
},
"country": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "The country of the source",
"title": "Country"
},
"city": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "The city of the source",
"title": "City"
},
"latitude": {
"anyOf": [
{
"type": "number"
},
{
"type": "null"
}
],
"default": null,
"description": "The latitude of the source",
"title": "Latitude"
},
"longitude": {
"anyOf": [
{
"type": "number"
},
{
"type": "null"
}
],
"default": null,
"description": "The longitude of the source",
"title": "Longitude"
},
"rdns": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "The rDNS of the source",
"title": "Rdns"
}
},
"required": [
"scope",
"value"
],
"title": "AlertSource",
"type": "object"
}
},
"type": "object",
"properties": {
"metadata": {
"type": "object",
"properties": {
"version": {
"type": "integer",
"const": 1
},
"issuer": {
"type": "string",
"const": "crowdsec.net"
}
},
"required": [
"version",
"issuer"
]
},
"details": {
"properties": {
"event_id": {
"description": "ID of the source event",
"examples": [
"c6d468d4f1084ebca84165c33f97fbc4"
],
"title": "Event Id",
"type": "string"
},
"organization_id": {
"description": "Organization ID of the source event",
"examples": [
"12345678-1234-1234-1234-123456789012"
],
"title": "Organization Id",
"type": "string"
},
"event_timestamp": {
"description": "Timestamp of the source event",
"examples": [
"2021-07-29T12:00:00+00:00"
],
"format": "date-time",
"title": "Event Timestamp",
"type": "string"
},
"event_type": {
"const": "alert_triggered",
"default": "alert_triggered",
"title": "Event Type",
"type": "string"
},
"uuid": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "The alert UUID",
"title": "Uuid"
},
"message": {
"anyOf": [
{
"type": "string"
},
{
"type": "null"
}
],
"default": null,
"description": "The alert message",
"title": "Message"
},
"scenario": {
"description": "The attack scenario",
"title": "Scenario",
"type": "string"
},
"behaviors": {
"default": [],
"description": "The attack behaviors",
"items": {
"$ref": "#/$defs/AlertBehavior"
},
"title": "Behaviors",
"type": "array"
},
"start_at": {
"description": "The attack start time",
"format": "date-time",
"title": "Start At",
"type": "string"
},
"stop_at": {
"description": "The attack stop time",
"format": "date-time",
"title": "Stop At",
"type": "string"
},
"target": {
"$ref": "#/$defs/AlertTarget",
"description": "The target of the attack"
},
"source": {
"$ref": "#/$defs/AlertSource",
"description": "The source of the attack"
},
"is_manual_decision": {
"default": false,
"description": "Whether the decision was created manually",
"title": "Is Manual Decision",
"type": "boolean"
},
"scenario_confidence": {
"default": 0,
"description": "The confidence of the scenario",
"title": "Scenario Confidence",
"type": "integer"
}
},
"required": [
"event_id",
"organization_id",
"event_timestamp",
"event_type",
"uuid",
"message",
"scenario",
"behaviors",
"start_at",
"stop_at",
"target",
"source",
"is_manual_decision",
"scenario_confidence"
],
"title": "AlertTriggered",
"type": "object"
}
},
"required": [
"metadata",
"details"
]
}
Troubleshooting
Network error
If you are unable to ping your webhook URL, this may be because of networking problem.
The webhook integration is allowed to send HTTP request on the following port:
8080804438443
